inno setup安装包分析

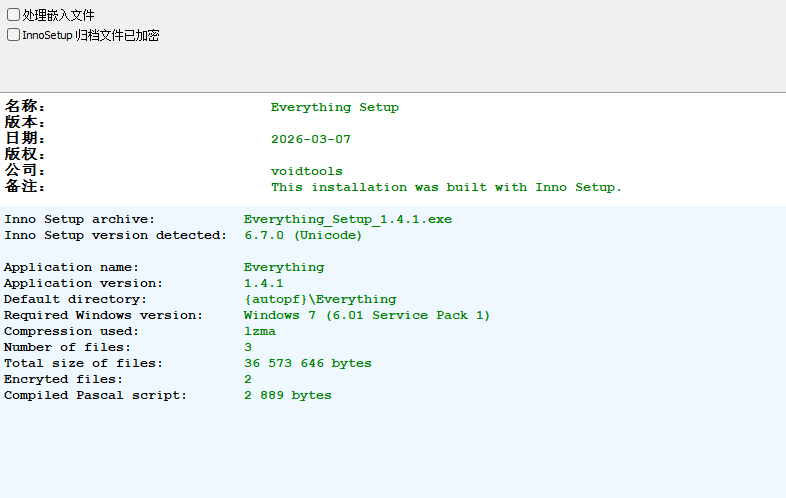

拿到的附件是一个inno setup安装包，可以通过安装然后寻找释放文件（但是正常运行安装了就会锁屏），但是inno setup是开源的，开源找到解包的项目，使用innounp可以查看安装包中包含的文件，但是尝试提取会显示需要密码

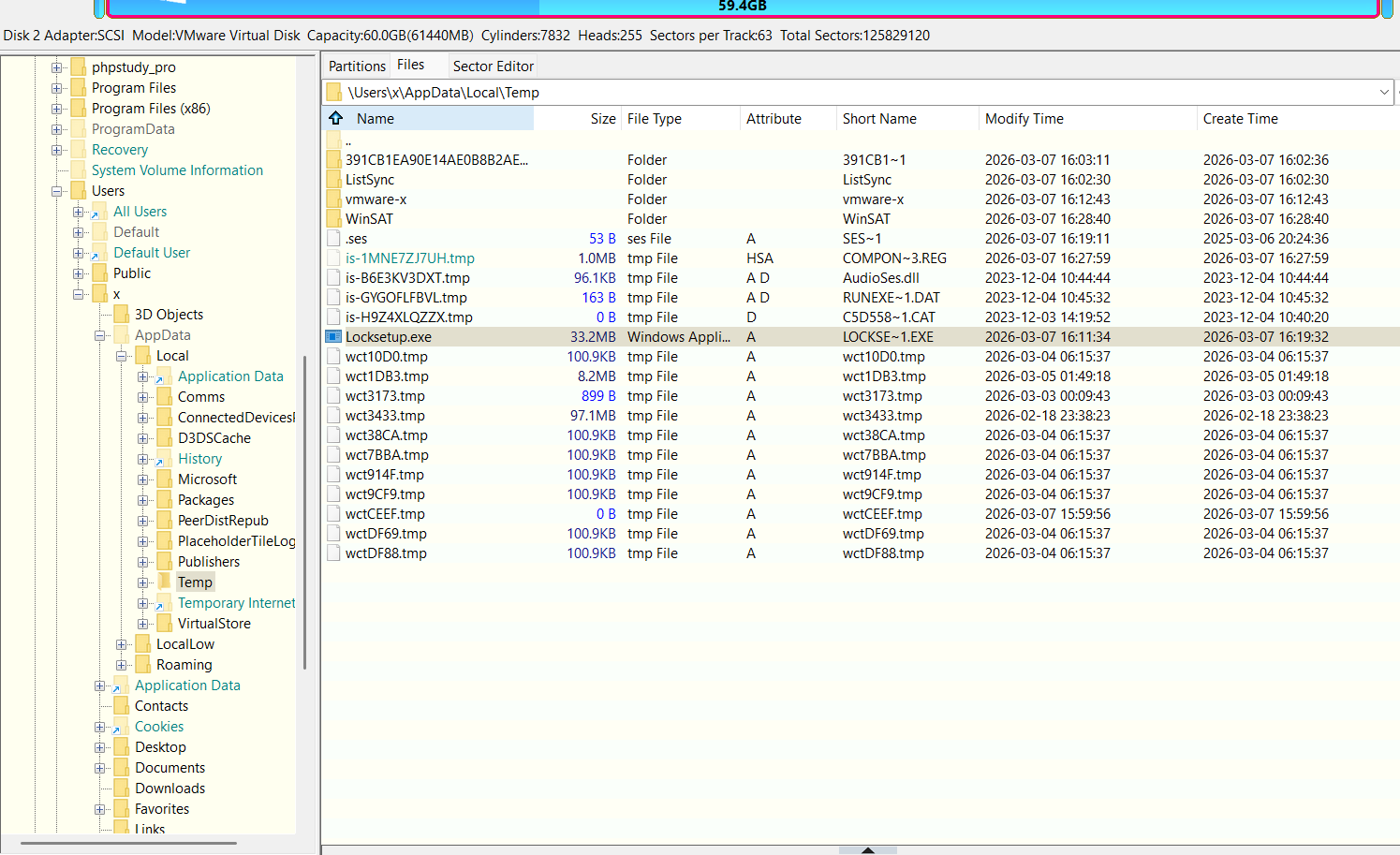

如何拿到这些文件，预期是运行之后使用取证工具进行提取（这里感谢一下Xherlock师傅，预期是用开源解包工具解包，后面借鉴了一下他帮我测题时采用的解题方法，我又加了一层密码）
loader
提取得到文件通过Everything.exe查看文件属性可以发现就是官网的安装包 （分别运行两个文件也行），所以分析Locksetup.exe（到这里用ai可以省token）

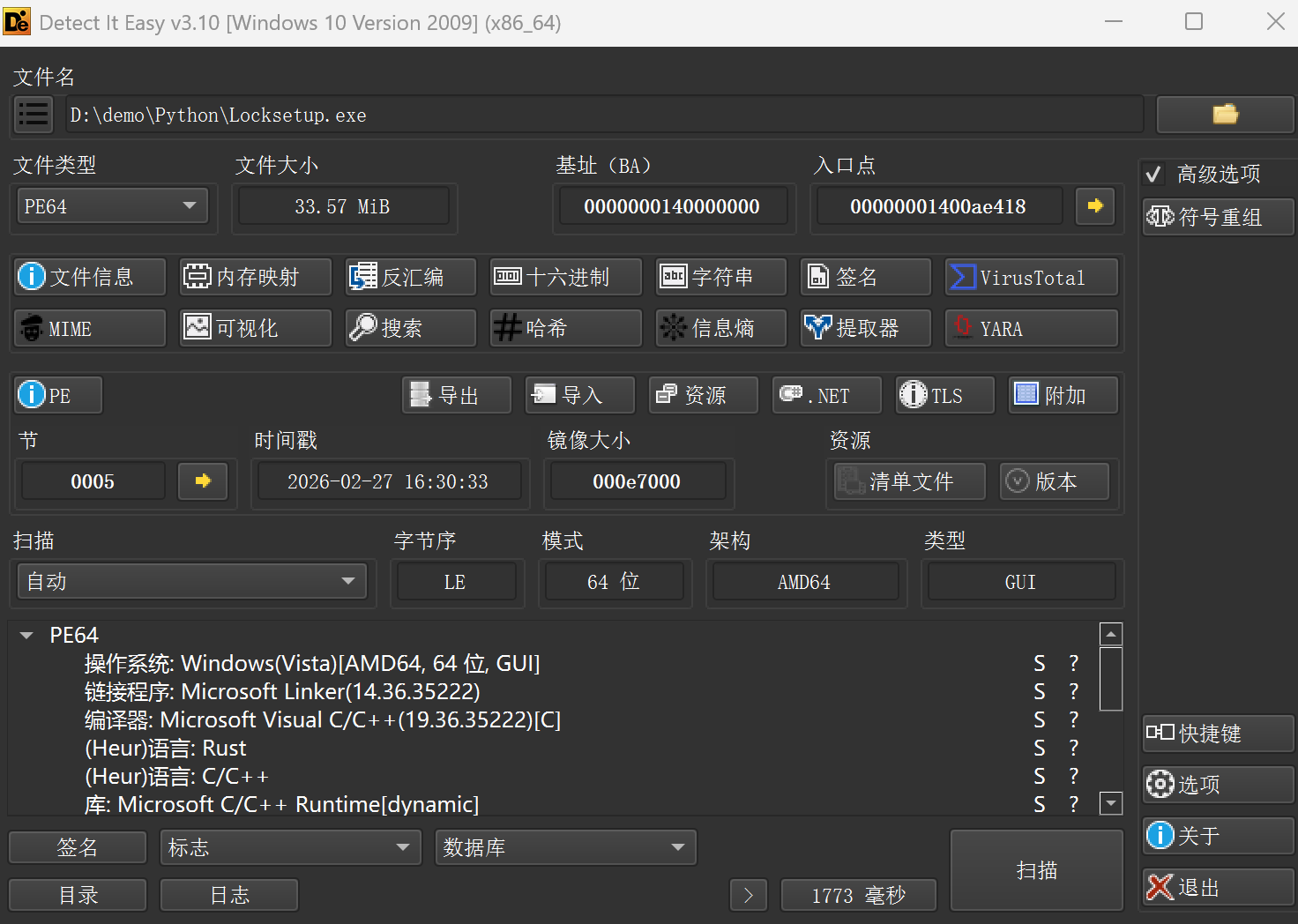

Locksetup.exe是一个rust程序

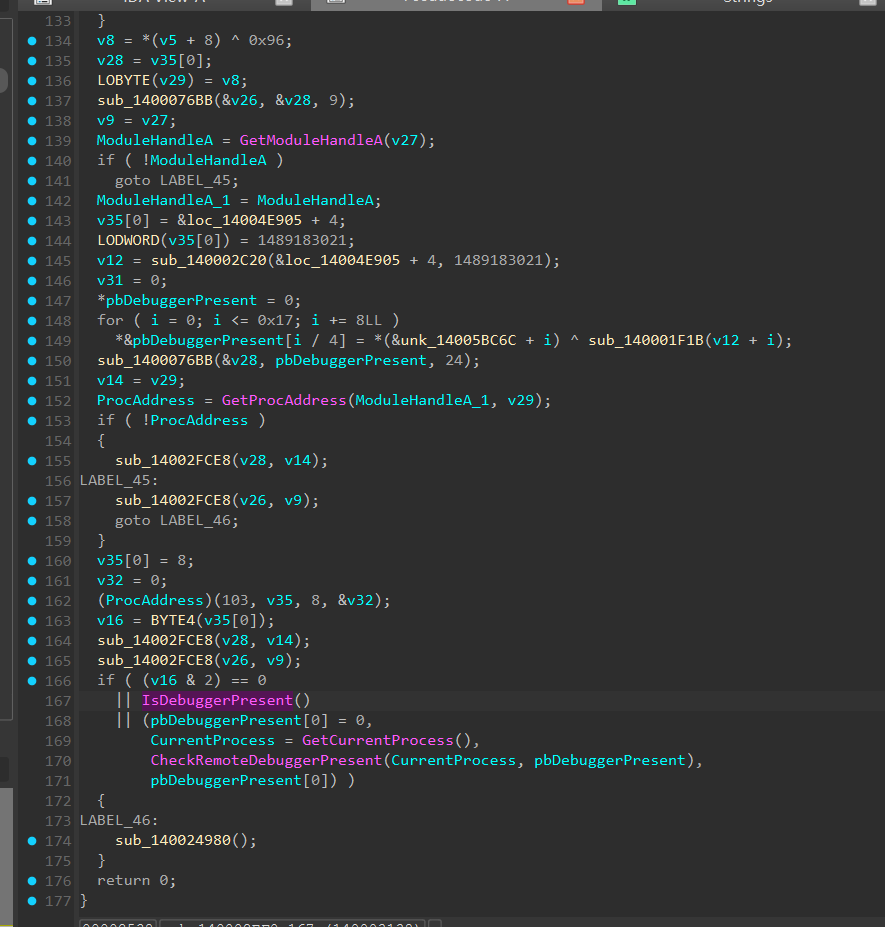

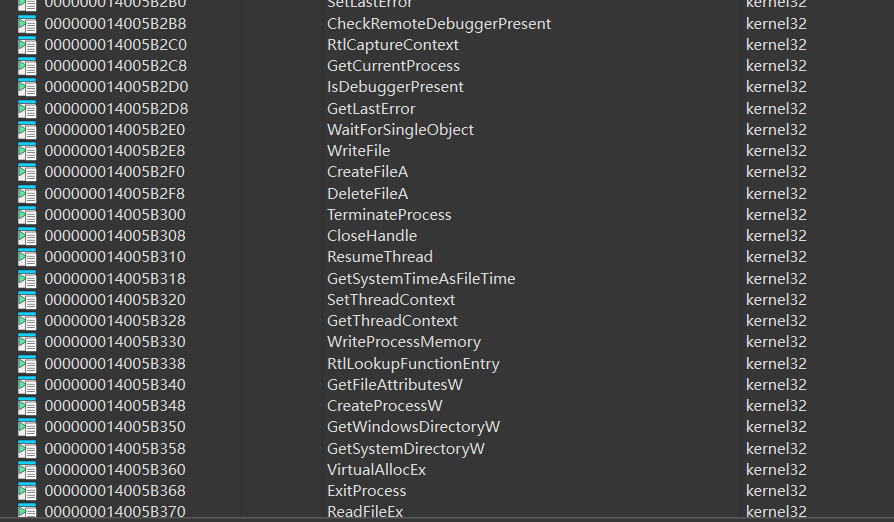

如果尝试过调试可以发现存在一个很明显的反调，可以patch也可以暂时不用管，根据题目描述“需要开启测试模式”可以猜测加载了驱动，由于没有隐藏api的调用，可以根据api调用流快速分析

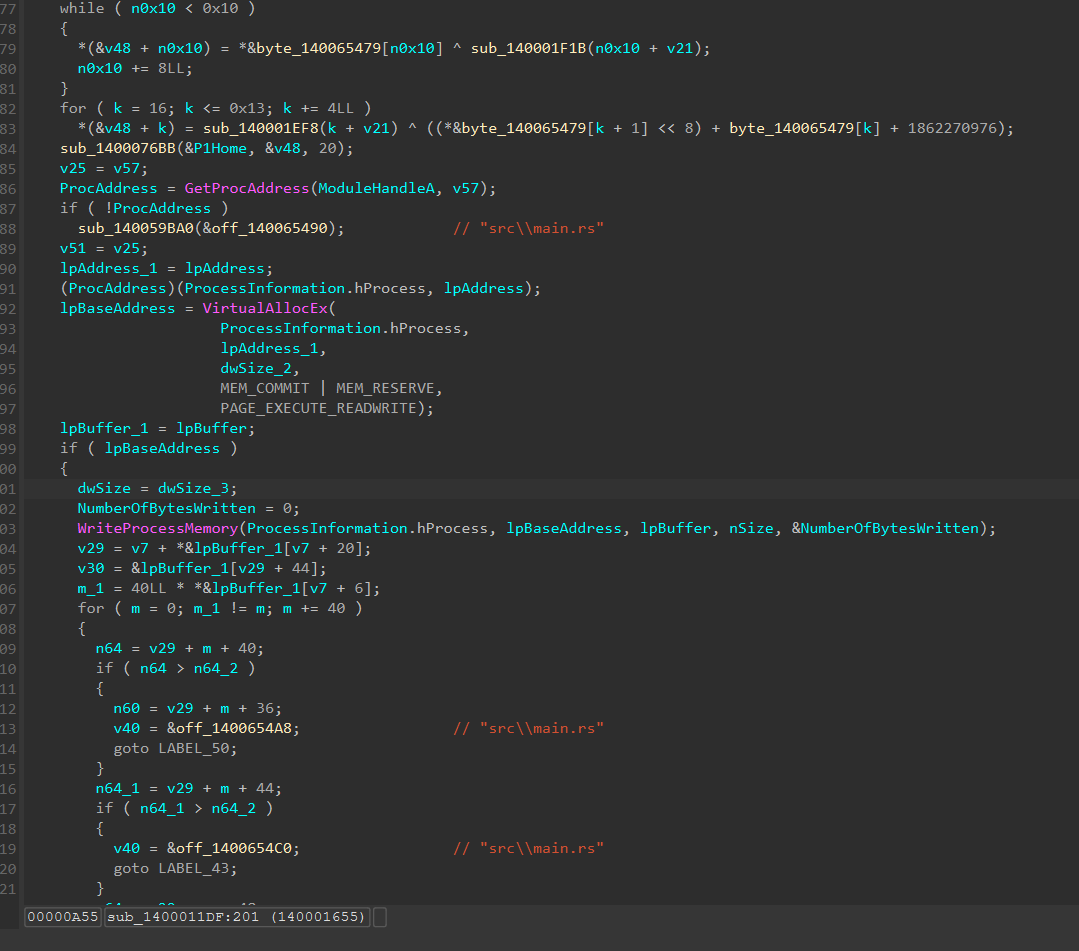

很明显的进程注入（测试时使用ai进行分析，看会不会被秒，发现目标进程都被分析出来，ai还是太强了

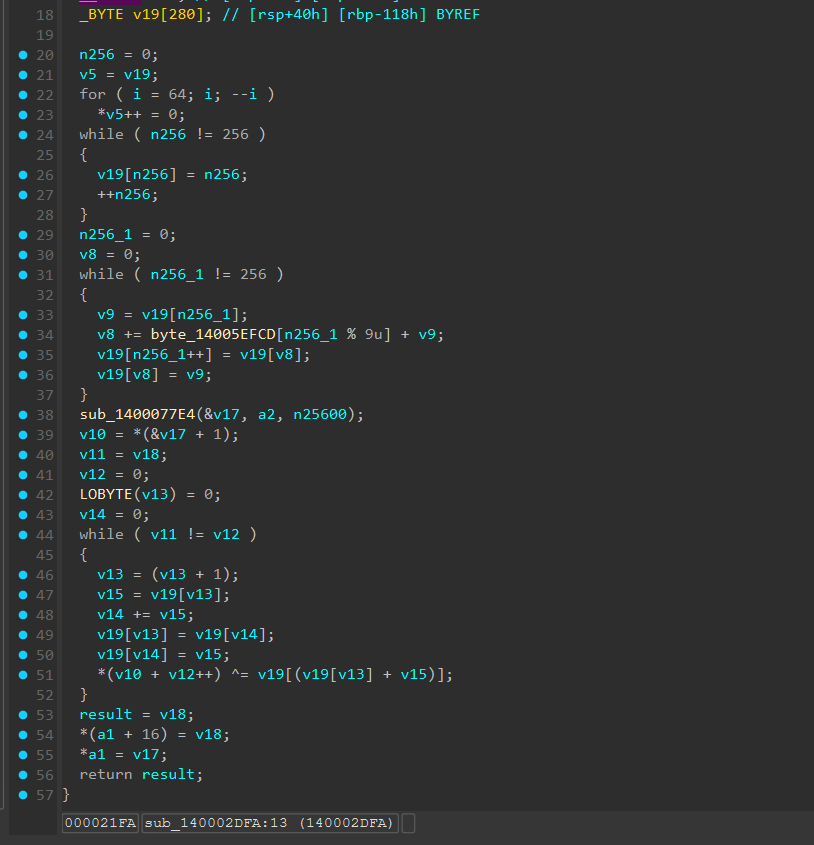

分析得到注入的数据是通过rc4解密之后的exe文件，key为SUCTF2026
这个文件可以通过手动解密，也可以在patch 反调之后调试，自解密然后dump

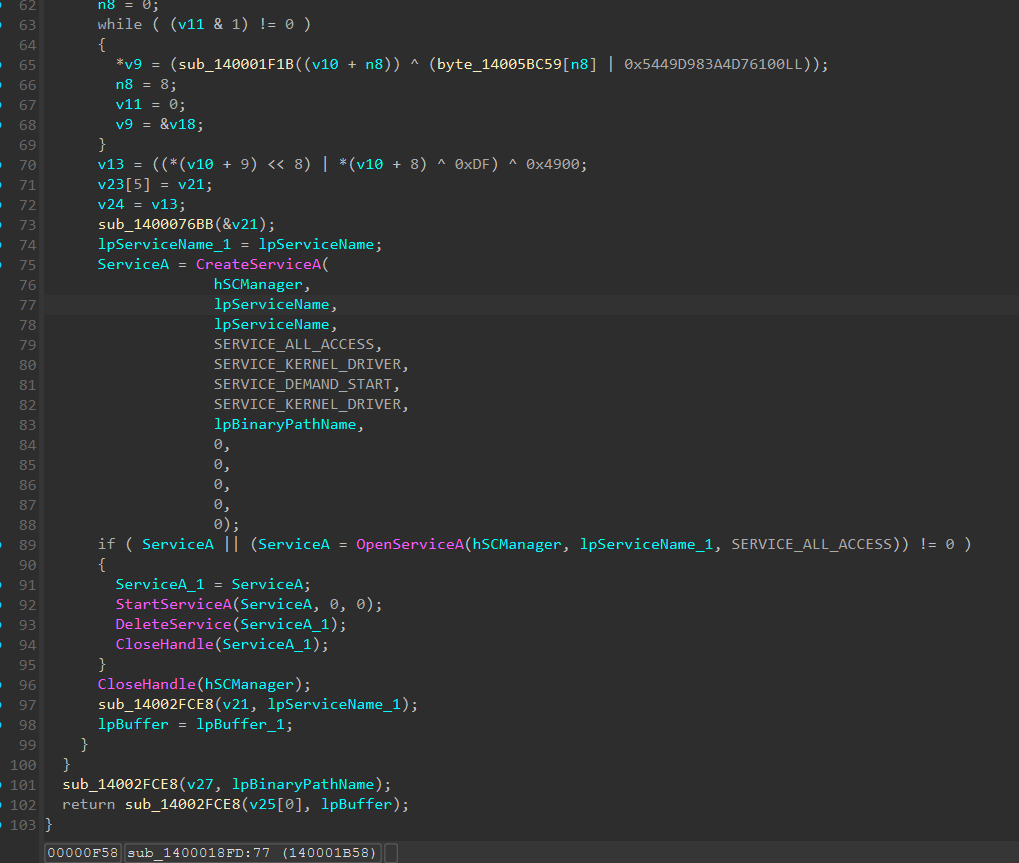

通过api分析可以发现这里进行了驱动的注册和加载
反推寻找驱动的数据，然后将其dump

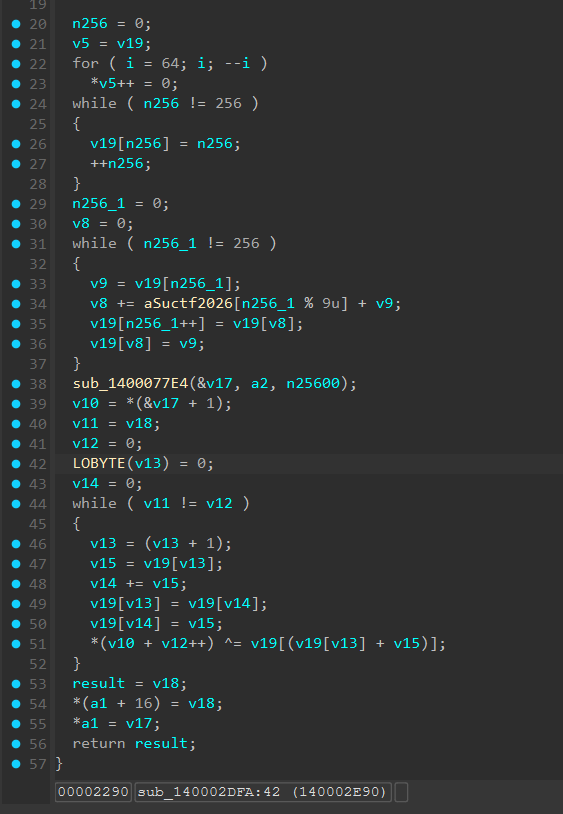

与进程注入部分采用的算法相同，同样的方法解密即可
核心PE与驱动
注入进程的exe文件

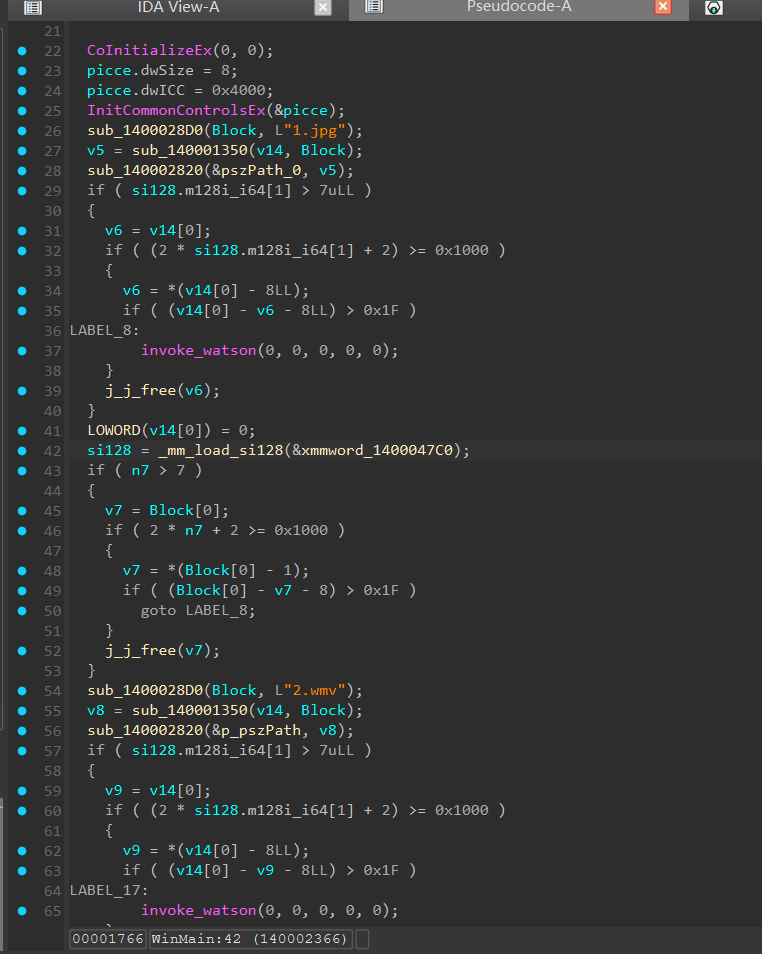

很明显的锁屏逻辑

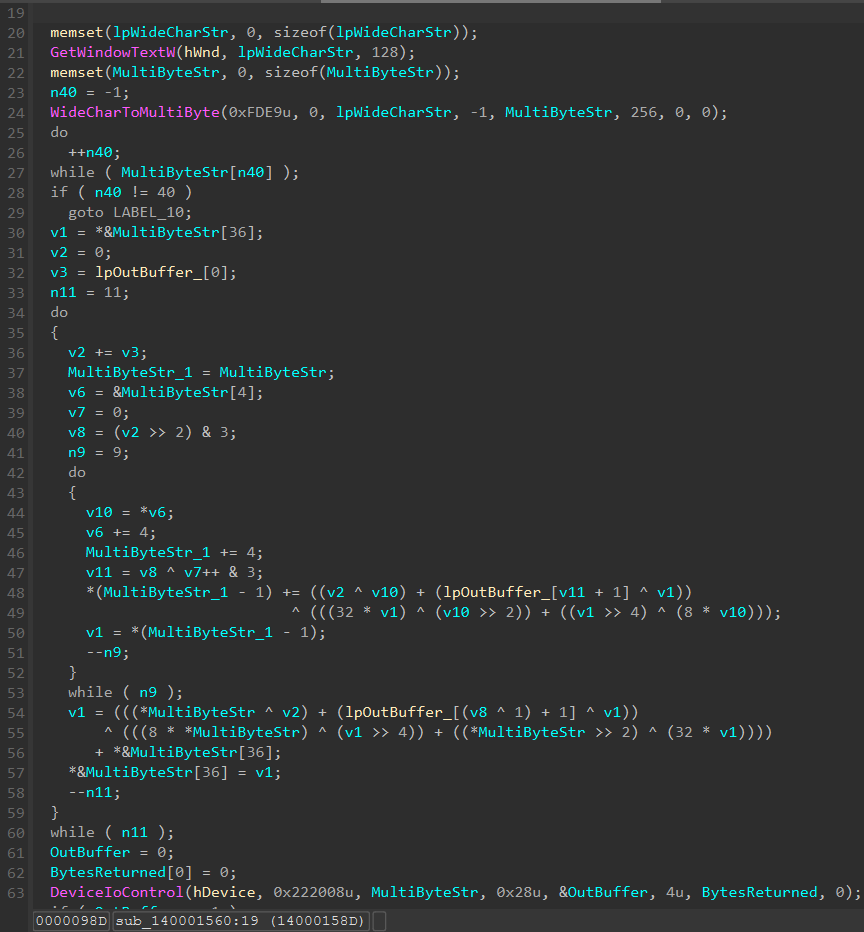

加密算法采用的是xxtea的变种，Delta、Key[0~3]是来自驱动的，通过加密之后，将密文传回驱动进行验证
驱动分析

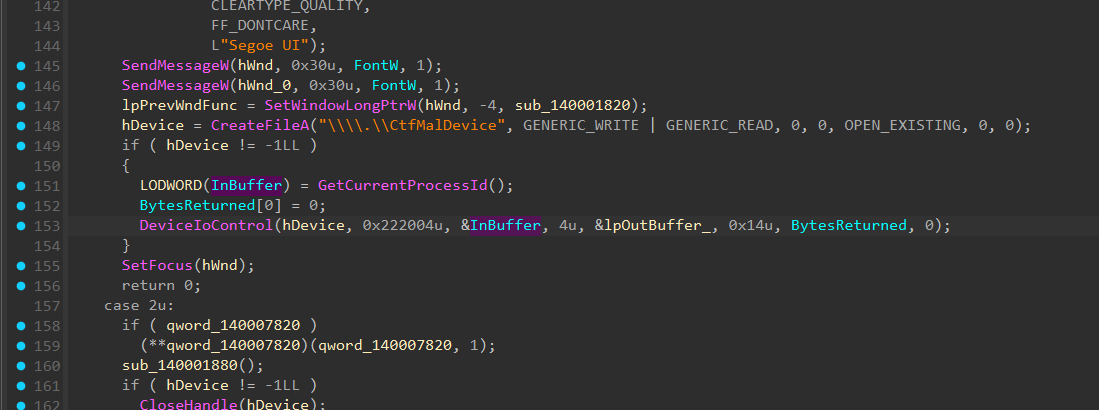

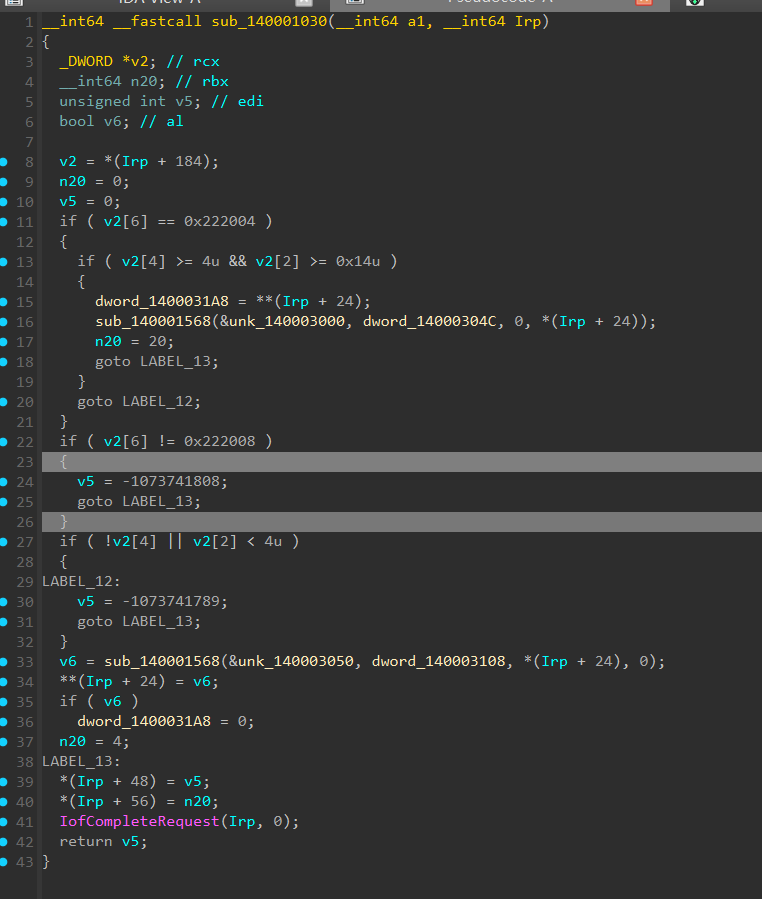

根据不同的IOCTL传入不同的数据进入sub_140001568
IOCTL 0x222004： Key 、Delta（也可以动调exe文件获得
IOCTL 0x222008：密文

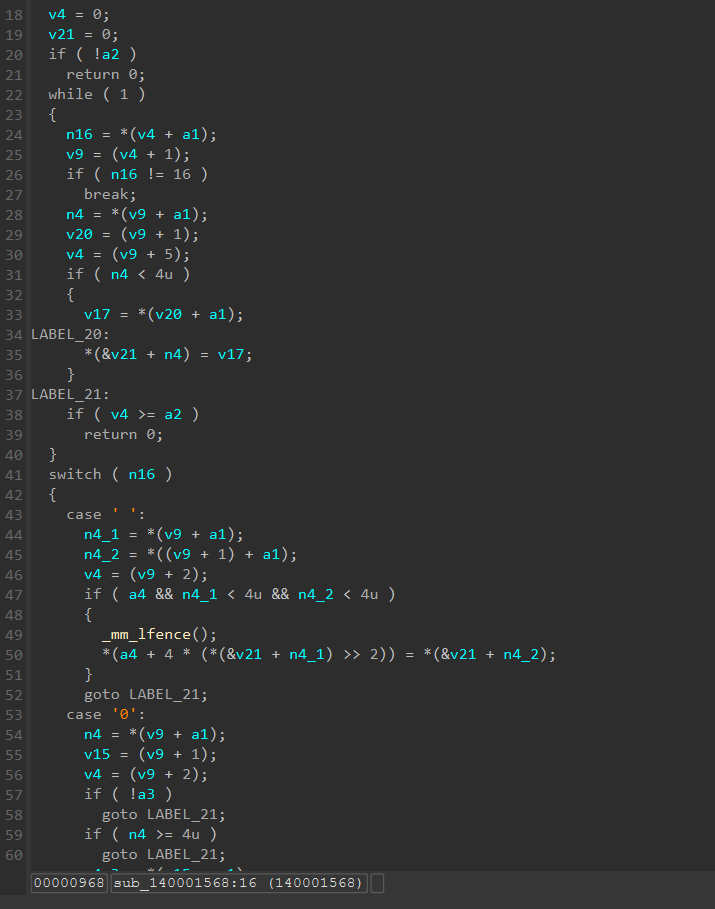

这里实现了一个简单的VM（本来想加混淆，但感觉会有手艺人手打，所以没加，而且混淆对人恶心，对ai没啥效果
把的关键函数丢给ai，ai 30s生成exp
exp：
import struct
g_VmCode_GetSecrets = bytes([
0x10, 0x00, 0x8E, 0x6A, 0x37, 0x9E, 0x10, 0x01, 0x00, 0x00, 0x00, 0x00, 0x20, 0x01, 0x00, 0x10, 0x00, 0xEF, 0xBE, 0xAD, 0xDE, 0x10, 0x01, 0x04, 0x00, 0x00, 0x00, 0x20, 0x01, 0x00, 0x10, 0x00, 0xBE, 0xBA, 0xFE, 0xCA, 0x10, 0x01, 0x08, 0x00, 0x00, 0x00, 0x20, 0x01, 0x00, 0x10, 0x00, 0xDE, 0xC0, 0x37, 0x13, 0x10, 0x01, 0x0C, 0x00, 0x00, 0x00, 0x20, 0x01, 0x00, 0x10, 0x00, 0x0D, 0xF0, 0xAD, 0x0B, 0x10, 0x01, 0x10, 0x00, 0x00, 0x00, 0x20, 0x01, 0x00, 0xFF
])
g_VmCode_Verify = bytes([
0x10, 0x01, 0x00, 0x00, 0x00, 0x00, 0x30, 0x00, 0x01, 0x10, 0x02, 0xB1, 0xE7, 0xA1, 0x8D, 0x40, 0x00, 0x02, 0x10, 0x01, 0x04, 0x00, 0x00, 0x00, 0x30, 0x00, 0x01, 0x10, 0x02, 0xE5, 0x32, 0xA4, 0xCA, 0x40, 0x00, 0x02, 0x10, 0x01, 0x08, 0x00, 0x00, 0x00, 0x30, 0x00, 0x01, 0x10, 0x02, 0xBC, 0x27, 0xEC, 0x6E, 0x40, 0x00, 0x02, 0x10, 0x01, 0x0C, 0x00, 0x00, 0x00, 0x30, 0x00, 0x01, 0x10, 0x02, 0x53, 0x2B, 0xC1, 0xEF, 0x40, 0x00, 0x02, 0x10, 0x01, 0x10, 0x00, 0x00, 0x00, 0x30, 0x00, 0x01, 0x10, 0x02, 0xC2, 0x05, 0x75, 0xFA, 0x40, 0x00, 0x02, 0x10, 0x01, 0x14, 0x00, 0x00, 0x00, 0x30, 0x00, 0x01, 0x10, 0x02, 0xA6, 0x88, 0xAC, 0x54, 0x40, 0x00, 0x02, 0x10, 0x01, 0x18, 0x00, 0x00, 0x00, 0x30, 0x00, 0x01, 0x10, 0x02, 0x99, 0xAD, 0x96, 0x2F, 0x40, 0x00, 0x02, 0x10, 0x01, 0x1C, 0x00, 0x00, 0x00, 0x30, 0x00, 0x01, 0x10, 0x02, 0x15, 0x1A, 0x74, 0x77, 0x40, 0x00, 0x02, 0x10, 0x01, 0x20, 0x00, 0x00, 0x00, 0x30, 0x00, 0x01, 0x10, 0x02, 0xC1, 0x73, 0x86, 0x3E, 0x40, 0x00, 0x02, 0x10, 0x01, 0x24, 0x00, 0x00, 0x00, 0x30, 0x00, 0x01, 0x10, 0x02, 0x82, 0xF2, 0xB9, 0xC2, 0x40, 0x00, 0x02, 0xFF
])
def parse_vm_bytecode(bytecode, is_secret_extraction=False):
IP = 0
R = [0, 0, 0, 0]
output_buffer = {}
expected_cipher = []
while IP < len(bytecode):
opcode = bytecode[IP]
IP += 1
if opcode == 0x10: # OP_MOV_R_IMM32
reg = bytecode[IP]
val = struct.unpack('<I', bytecode[IP+1:IP+5])[0]
IP += 5
R[reg] = val
print(f" 0x10: MOV R{reg}, 0x{val:08X}")
if not is_secret_extraction and reg == 2:
expected_cipher.append(val)
elif opcode == 0x20: # OP_STORE_OUT
regAddr = bytecode[IP]
regVal = bytecode[IP+1]
IP += 2
offset = R[regAddr]
output_buffer[offset] = R[regVal]
print(f" 0x20: STORE_OUT [R{regAddr}], R{regVal} => Output[{offset}] = 0x{R[regVal]:08X}")
elif opcode == 0x30: # OP_LOAD_IN
regDst = bytecode[IP]
regAddr = bytecode[IP+1]
IP += 2
print(f" 0x30: LOAD_IN R{regDst}, [R{regAddr}]")
elif opcode == 0x40: # OP_ASSERT_EQ
reg1 = bytecode[IP]
reg2 = bytecode[IP+1]
IP += 2
print(f" 0x40: ASSERT_EQ R{reg1}, R{reg2}")
elif opcode == 0xFF: # OP_HALT
print(" 0xFF: HALT")
break
else:
print(f"[!] 未知操作码: {opcode:02X}")
break
if is_secret_extraction:
delta = output_buffer.get(0, 0)
key = [output_buffer.get(4 + i*4, 0) for i in range(4)]
return delta, key
else:
return expected_cipher
def btea_decrypt_variant(v, key, delta):
n = len(v)
if n <= 1:
return v
rounds = 6 + 52 // n
sum_val = (rounds * delta) & 0xFFFFFFFF
y = v[0]
for _ in range(rounds):
e = (sum_val >> 2) & 3
for p in range(n - 1, 0, -1):
z = v[p - 1]
part1 = ((z >> 4) ^ ((y << 3) & 0xFFFFFFFF)) & 0xFFFFFFFF
part2 = ((y >> 2) ^ ((z << 5) & 0xFFFFFFFF)) & 0xFFFFFFFF
part3 = ((sum_val ^ y) + (key[(p & 3) ^ e] ^ z)) & 0xFFFFFFFF
mx = (part1 + part2) ^ part3
v[p] = (v[p] - mx) & 0xFFFFFFFF
y = v[p]
p = 0
z = v[n - 1]
part1 = ((z >> 4) ^ ((y << 3) & 0xFFFFFFFF)) & 0xFFFFFFFF
part2 = ((y >> 2) ^ ((z << 5) & 0xFFFFFFFF)) & 0xFFFFFFFF
part3 = ((sum_val ^ y) + (key[(p & 3) ^ e] ^ z)) & 0xFFFFFFFF
mx = (part1 + part2) ^ part3
v[0] = (v[0] - mx) & 0xFFFFFFFF
y = v[0]
sum_val = (sum_val - delta) & 0xFFFFFFFF
return v
def solve():
delta, key = parse_vm_bytecode(g_VmCode_GetSecrets, is_secret_extraction=True)
print(f"\nDelta : 0x{delta:08X}")
print(f"Key : {[hex(k) for k in key]}\n")
expected_cipher = parse_vm_bytecode(g_VmCode_Verify, is_secret_extraction=False)
print(f"\n密文: {[hex(c) for c in expected_cipher]}\n")
cipher_v = list(expected_cipher)
plain_v = btea_decrypt_variant(cipher_v, key, delta)
flag_bytes = struct.pack('<' + 'I' * len(plain_v), *plain_v)
print("字节流还原结果:", flag_bytes)
try:
flag_str = flag_bytes.decode('utf-8')
print(f"\nFlag: {flag_str}")
except Exception as e:
print("\n字符串解码失败", e)
if __name__ == '__main__':
solve()
# 0x10: MOV R0, 0x9E376A8E
# 0x10: MOV R1, 0x00000000
# 0x20: STORE_OUT [R1], R0 => Output[0] = 0x9E376A8E
# 0x10: MOV R0, 0xDEADBEEF
# 0x10: MOV R1, 0x00000004
# 0x20: STORE_OUT [R1], R0 => Output[4] = 0xDEADBEEF
# 0x10: MOV R0, 0xCAFEBABE
# 0x10: MOV R1, 0x00000008
# 0x20: STORE_OUT [R1], R0 => Output[8] = 0xCAFEBABE
# 0x10: MOV R0, 0x1337C0DE
# 0x10: MOV R1, 0x0000000C
# 0x20: STORE_OUT [R1], R0 => Output[12] = 0x1337C0DE
# 0x10: MOV R0, 0x0BADF00D
# 0x10: MOV R1, 0x00000010
# 0x20: STORE_OUT [R1], R0 => Output[16] = 0x0BADF00D
# 0xFF: HALT
# Delta : 0x9E376A8E
# Key : ['0xdeadbeef', '0xcafebabe', '0x1337c0de', '0xbadf00d']
# 0x10: MOV R1, 0x00000000
# 0x30: LOAD_IN R0, [R1]
# 0x10: MOV R2, 0x8DA1E7B1
# 0x40: ASSERT_EQ R0, R2
# 0x10: MOV R1, 0x00000004
# 0x30: LOAD_IN R0, [R1]
# 0x10: MOV R2, 0xCAA432E5
# 0x40: ASSERT_EQ R0, R2
# 0x10: MOV R1, 0x00000008
# 0x30: LOAD_IN R0, [R1]
# 0x10: MOV R2, 0x6EEC27BC
# 0x40: ASSERT_EQ R0, R2
# 0x10: MOV R1, 0x0000000C
# 0x30: LOAD_IN R0, [R1]
# 0x10: MOV R2, 0xEFC12B53
# 0x40: ASSERT_EQ R0, R2
# 0x10: MOV R1, 0x00000010
# 0x30: LOAD_IN R0, [R1]
# 0x10: MOV R2, 0xFA7505C2
# 0x40: ASSERT_EQ R0, R2
# 0x10: MOV R1, 0x00000014
# 0x30: LOAD_IN R0, [R1]
# 0x10: MOV R2, 0x54AC88A6
# 0x40: ASSERT_EQ R0, R2
# 0x10: MOV R1, 0x00000018
# 0x30: LOAD_IN R0, [R1]
# 0x10: MOV R2, 0x2F96AD99
# 0x40: ASSERT_EQ R0, R2
# 0x10: MOV R1, 0x0000001C
# 0x30: LOAD_IN R0, [R1]
# 0x10: MOV R2, 0x77741A15
# 0x40: ASSERT_EQ R0, R2
# 0x10: MOV R1, 0x00000020
# 0x30: LOAD_IN R0, [R1]
# 0x10: MOV R2, 0x3E8673C1
# 0x40: ASSERT_EQ R0, R2
# 0x10: MOV R1, 0x00000024
# 0x30: LOAD_IN R0, [R1]
# 0x10: MOV R2, 0xC2B9F282
# 0x40: ASSERT_EQ R0, R2
# 0xFF: HALT
# 密文: ['0x8da1e7b1', '0xcaa432e5', '0x6eec27bc', '0xefc12b53', '0xfa7505c2', '0x54ac88a6', '0x2f96ad99', '0x77741a15', '0x3e8673c1', '0xc2b9f282']
# 字节流还原结果: b'SUCTF{SJCMA23-AX8MQ3IU-8UHCSO90-QCM1S0L}'
总结
看了师傅们的wp才发现可以通过分析bin拿到inno 安装包密码（也算是我没注意到的地方，学习到了），也看到有些ai直接生吃开源项目的安装算法，去读硬编码拿到解压密码（ai是真强）。
我很菜也做不到出的题目防住ai，所以最初的设想是人能做前面的部分或者ai辅助人进行分析（这样可能更快），至于后面的部分被ai撕了就撕了吧，但是没想到直接用ai爆安装包。。。但是我也在读ai写的wp学到了新东西，还算能接受吧（可能我是抱着乐趣和学习的心态去打ctf，所以我对ai秒杀题目并不是那么在意吧。
